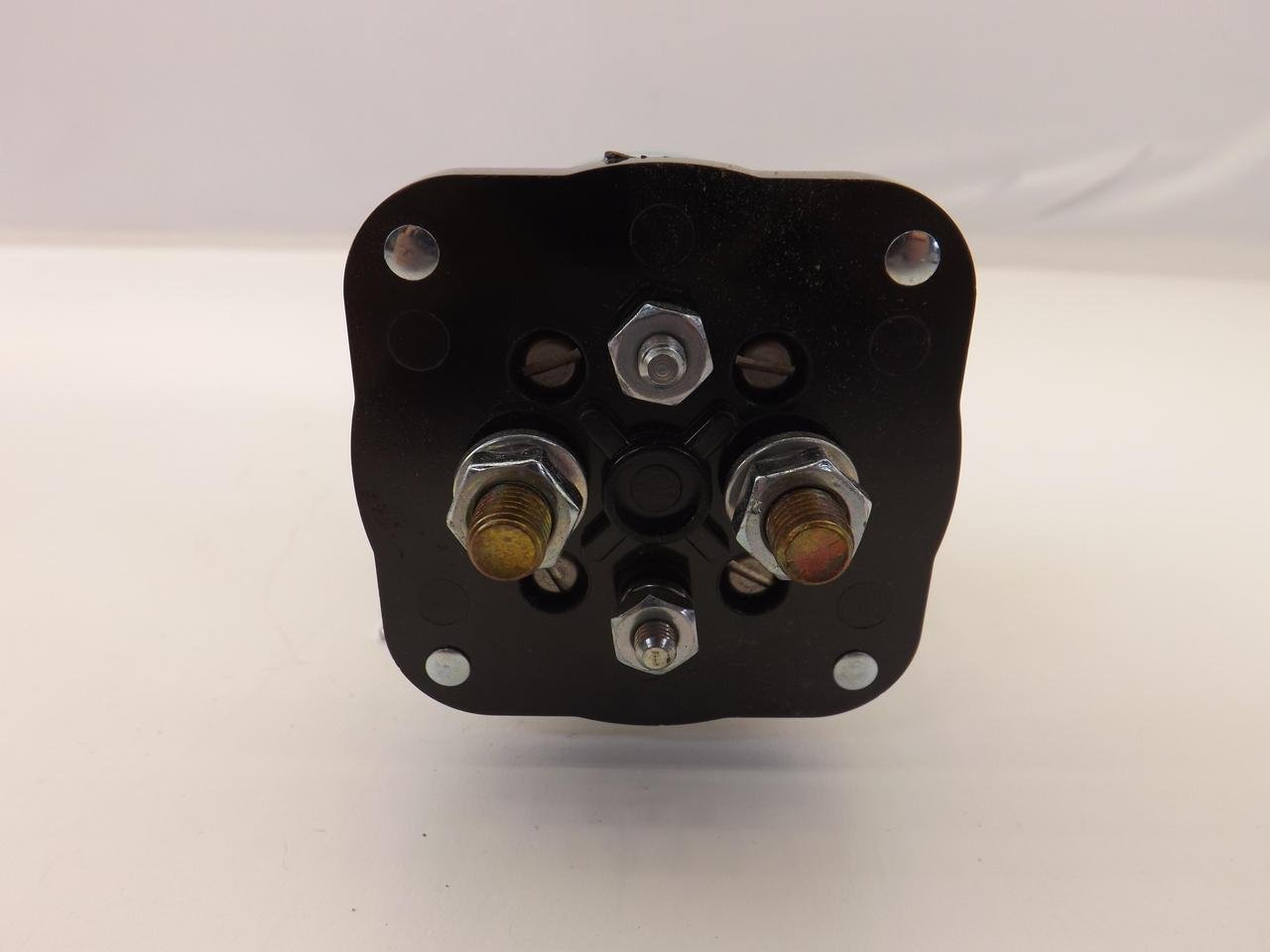

White Rodgers / Emerson - 586-905 - Contactor, 200 A, Flange, 24 VDC, SPST-NO, 1 Pole
Product details
| Management number | 221598742 | Release Date | 2026/05/03 | List Price | US$46.00 | Model Number | 221598742 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The WHITE-RODGERS - 586-114111S1 is a Definite Purpose Contactor, an industrial electrical device designed to handle high current load applications. Primarily used in the HVAC industry, it controls electrically operated systems such as motors, heating elements or lighting loads. This tool is designed for use in various commercial and industrial settings.Amps: With a rating of 200A, this contactor is intended to handle high amounts of electrical current within its specified range.Coil Resistance: The coil resistance measures at 84 ohms (Ω), influencing the efficiency and performance of this device.Coil Termination: It features a #10-32 UNF thread for secure connection between the coil and the electrical circuit.Contact Material: Made from Silver Alloy which influences conductivity, durability, and resistance to corrosion.Duty Cycle: Designed for continuous operation within the parameters specified by the manufacturer.Enclosure: Water- enclosure aims to protect internal components from environmental factors like water, dust etc., as per product specificationsOperating Temperature Range: Rated for operation within temperatures ranging from -40 Degrees F to 149 Degrees F according to manufacturer's guidelinesPoles & Terminals Count : Comes with one pole and four terminals for controlling power distribution
- Made in Mexico
| UPC | 078671010369 |
|---|---|
| Model | 586-905 |
| Brand Name | White-Rodgers |
| Unit Count | 1.0 Count |
| Item Weight | 1 Pounds |
| Part Number | 586-905 |
| Coil Voltage | 24 Volts (DC) |
| Manufacturer | White-Rodgers |
| Mounting Type | Flange Mount |
| Connector Type | Screw |
| Current Rating | 200 Amps |
| Operation Mode | Automatic |
| Coil Resistance | 84 Ohms |
| Specification Met | RoHS |
| Included Components | Rod |
| Warranty Description | No Warranty |
| Minimum Switching Voltage | 24 Volts (DC) |
| EU Spare Part Availability Duration | 5 Years |
