MW Mean Well LCM-60U 2V-90V 500mA-1400mA 50.4W Multiple-Stage Constant Current Mode LED Driver
Product details
| Management number | 220678470 | Release Date | 2026/05/03 | List Price | US$15.50 | Model Number | 220678470 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
FeaturesConstant current mode90~132VAC input onlyMultiple-stage output current level selectable by DIP switchClass II power unit, no F.G.Built-in 3 in 1 dimming function, 0~10VDC, PWM signal,or resistance (non DA-Type)Built-in DALI interface and push dimming function (DA-Type)Temperature compensation function by external NTCPower supplies synchronization function up to 10 unitsSuitable for indoor LED lighting applicationsProtections: Short circuit / Over voltage / Over temp.3 years warranty
- Constant current mode
- Multiple-stage output current level selectable by DIP switch

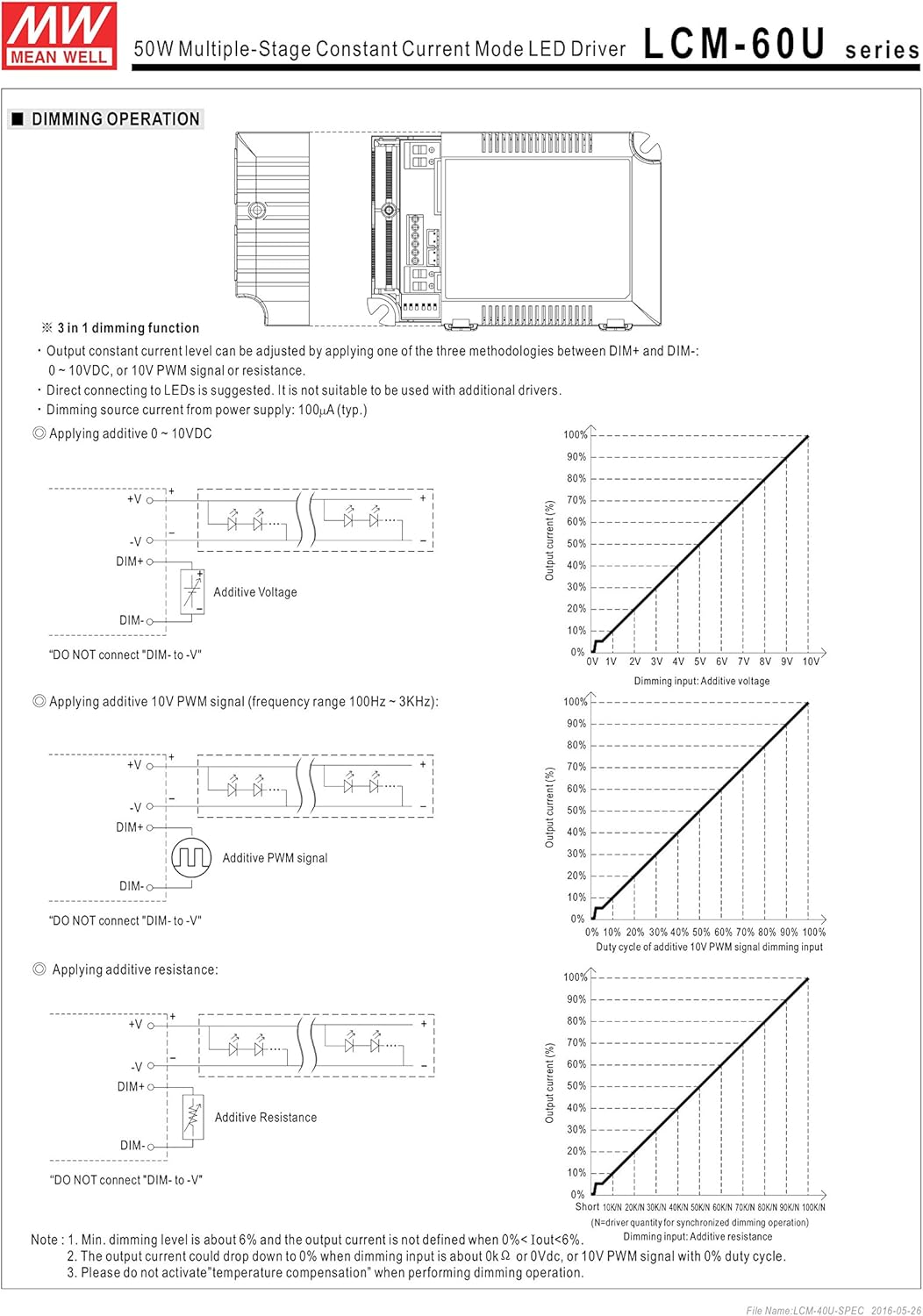

- Built-in 3 in 1 dimming function, 0~10VDC, PWM signal,or resistance (non DA-Type)
- Built-in DALI interface and push dimming function (DA-Type)
- 3 years warranty
| Brand Name | MEAN WELL |
|---|---|
| Item Weight | 0.28 Kilograms |
| Part Number | LCM-60U |
| Manufacturer | MEAN WELL |
| Power Source | Corded Electric |
| Specification Met | CE |
